Some workstation-type computers have a 13w3 monitor port.

Use a commercially-available 13w3 ⇔ D-Sub 15-pin adapter cable to connect

the Computer 2/Component Video port at the rear of the projector to the

monitor port of the computer.

Tip :

• After making the connections, change the Comp2/YCbCr Input setting in the Setting

menu to Analog-RGB. (P.69)

• Do not bind the power cord and the computer cable together, otherwise image

interference or errors in operation may result.

• Some workstations may require a special cable. Consult the workstation manufacturer

for further details.

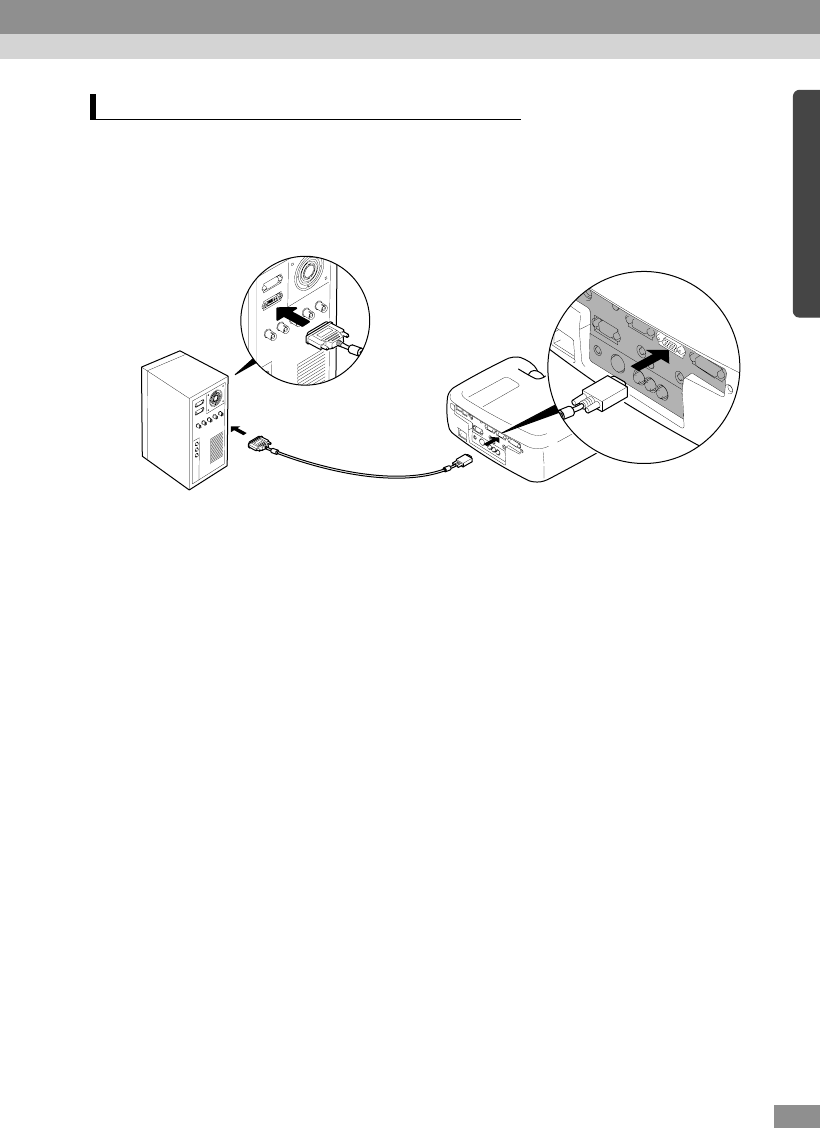

If the monitor port is a 13w3 port

13w3 cable (commercially-available)

To Computer 2/

Component Video port

To monitor port
